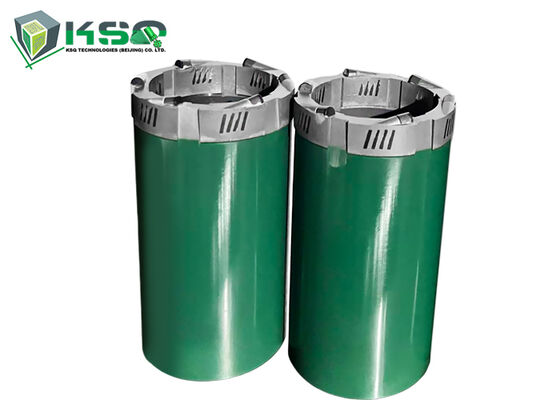

T6 Series 101mm PDC Core Drill Bit with High Abrasion Resistance for Rock Drilling

Productdetails:

Plaats van herkomst:	China
Merknaam:	MIROC
Modelnummer:	T6 101 mm

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Levertijd:	20-30
Levering vermogen:	3000

Contact

Gedetailleerde productomschrijving

Model-NR.:	T6 101	Materiaal:	PDC-snijder, TC
Gebruik:	bodembemonstering, boren van waterputten, geotechnische studies	Kernvatontwerp:	T6-serie
Matrijshoogte:	6 mm-25 mm	Matrijshardheid:	Zacht tot ultrahard
Voordeel:	Hoge prestaties Hoge slijtvastheid	Kleuren:	Optioneel
Specificatie:	T6-76 T6-86 T6-101 T6-116
Markeren:	T6 Series PDC Core Drill Bit , 101mm Diamond Core Drill Bit , High Abrasion Resistance Rock Core Drill Bit

T6-101mm PDC Core Drill Bit Standard for Drilling

T6 series core bits are engineered for surface exploration applications when used with T6 series core barrels.

Advanced Impregnated Bit Technology

Impregnated diamond bits are designed to penetrate a comprehensive range of geological formations, from the softest to the hardest rock types. These bits are manufactured using high-quality synthetic diamonds uniformly distributed throughout a tungsten carbide matrix. During drilling operations, the matrix wears away evenly, ensuring continuous exposure of new, sharp diamond cutting points throughout the bit's operational lifespan. All impregnated bits feature tungsten carbide and diamond gauge protection for enhanced durability.

The optimal diamond size, concentration, and matrix composition are specifically engineered according to the hardness and abrasiveness characteristics of the target rock formations.

PDC Bit Applications

PDC (Polycrystalline Diamond Compact) bits serve as a high-performance alternative to traditional tungsten carbide bits and surface set diamond bits, particularly effective in non-consolidated and medium-hard rock formations.

Available Core Bit Sizes

Standard Sizes

AQ, BQ, BQ3, NQ, NQ2, NQ3 (NQTT), HQ, HO3 (HQTT), PQ, PQ3, T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-86, T2-101, T6-76, T6-86, T6-101, T6-116, T6-131, T6-146, T6S-76, T6S-86, T6S-116, T6S-131, T6S-146, TBW, TNW, PWF, SWE, UWF, ZWF, AWG, BWG, NWG, HWG, AX, BX, NX, HX, EWM, AWM, BWM, NWM, HWM, AWT, BWT, NWT, HWT, LTK48, LTK60, BMLC, NMLC, HMLC, B36, B46, B56, B66, B76, B86, B101, B116, B131, B146, 36, 46, 56, 59, 75, 91, 110, 130, 150, 170, 219, 275

Core Bit Types and Applications

Based on application requirements and cutting media specifications, KSQ manufactures six distinct types of core bits:

Impregnated Diamond Type
Surface Set Diamond Type
Tungsten Carbide Type
PDC Type
PCD Type
Electroplated Diamond Type

A complete drilling system typically includes core bits, reaming shells, core barrels, drill rods, and drilling rig equipment. Core bits are specifically designed for drilling various materials including rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz, and other geological formations.
