Name: DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: DHD3.5-95mm
Price: 508.50 USD
Availability: InStock

Thuis Producten Boren

DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	MIROC
Certificering:	ISO
Modelnummer:	DHD3.5-95mm

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Levertijd:	20-30
Levering vermogen:	3000

Contact

Gedetailleerde productomschrijving

Gebruik:	Boren van putten, mijnbouw, bouw, steengroeven	Vorm - Gezicht:	Plat of concaaf of convex
Luchtdruk:	Hoge luchtdruk	Technologie:	Thema-inzetstuk
Type:	DTH-hamerbeetje	Materiaal:	Legeringsstaal
Kwaliteit:	100% merken van de de wereld de hoogste klasse van de kwaliteitsgelijkenis	Voordelen:	Hoge kwaliteit en fabrieksprijzen
Markeren:	DTH hammer drill bit for mining , 95mm rock drilling tool , water well drilling rig bit

DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig

Product Description

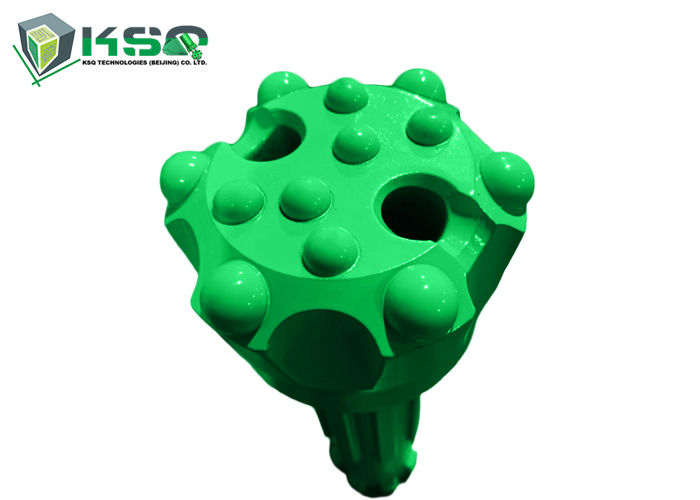

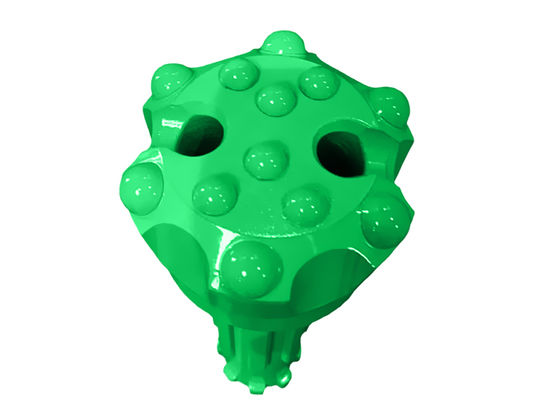

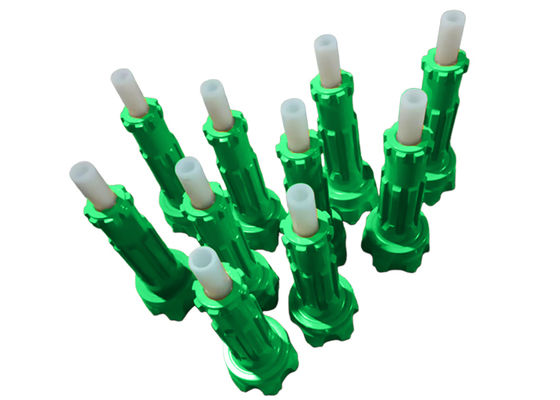

The DHD3.5 drill bit is a common DTH hammer drill bit model, widely used in mining, geological exploration, water well drilling, and construction projects. It connects with the drill pipe through API standard threads to ensure stability and reliability.

Manufactured with high-quality materials and advanced technology, the DHD3.5 drill bit offers extended service life and reduced replacement frequency.

This high air pressure DTH drill bit features our newest design and represents one of the most advanced DTH drill bits available worldwide.

Applications

Ideal for use in mining, energy, metallurgy, geology, coal, water conservancy, chemical industry, and road construction applications.

Our Advantages

Complete solution provider (DTH drill bit, DTH hammer, DTH Drill Rod, and value-added services)
Lower energy consumption with higher impact frequency - drilling speed is 15%-30% higher than other DTH Hammer series
Simple structure with reliable parts, long lifespan, and easy, cost-effective maintenance
Reduced air and oil consumption (approximately 10% lower oil consumption than models with foot valves)
Check valve can be replaced with one featuring a bigger air controlling hole for more efficient cuttings discharge

DHD3.5 Ballistic Convex Face Specifications

Bit Diameter (mm)	Bit Diameter (inch)	Buttons (Front)	Buttons (Gauge)	Flushing Holes	Weight (kg)	Part Number
90	3 1/2	4×12, 2×12	8×12	2	4.5	4148301219
95	3 3/4	4×12, 2×12	8×12	2	4.8	4148301220
100	3 7/8	4×13, 2×13	8×13	2	5	4148301221
105	4 1/8	4×14, 2×14	8×14	2	5.5	4148301222
